Single Vessel Filtration Unit

The Single Vessel filter unit is one of the most commonly used filtration unit in the oilfield industry. This offshore proof, skid-mounted filter unit is equipped with all necessary valves and safety features. The unit offers the most cost effective way to clean-up all possible oilfield fluids. It allows you to carry out the filtration process easily and effectively.

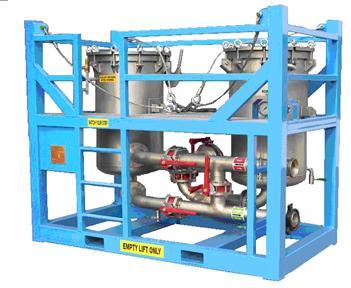

Duplex Cartridge Filter Unit. Model TDW 610 50/40

The Duplex cartridge filter unit is the most commonly used cartridge filter unit in the oilfield industry. This offshore proof, skid-mounted filter unit is equipped with all necessary valves and safety features. The Duplex offers the most cost effective way to clean-up all possible oilfield fluids. It allows you to simultaneously filter with one vessel, and easily change out the used cartridges of the other vessel.

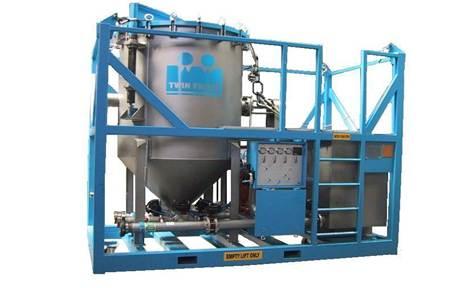

Vertical Pressure Leaf Filter (VPL Unit), 600 sq.ft. Filtration Area. M

The Vertical Pressure Leaf or Diatomaceous Earth filter unit is completely self-contained and equipped with all necessary auxiliaries to perform an effective filter job. The large filtration area of the VPL/ DE filter unit allows filtering fluids with a high dirt load, at a high flow rate, down to low NTU. The process design allows a laminar flow through the filter vessel and leafs. This results in a long filtration cycle and the lowest possible NTU output. There is no need for opening the filter vessel during clean out. This system saves up to 90% down time compared to conventional VPL system and filter presses.

Fluids to be filtered:

• Potassium Chloride
• Sodium Chloride
• Calcium Chloride
• Calcium Bromide
• Zinc Bromide

* Maximum flow rate processed by the 600 VPL-DE and Duplex Cartridge Filter Unit will vary from 15 BPM for KCl to 7 BPM for ZnBr2

Advantages for 600 VPL/DE Filter Units:

• Small footprint.                                    Less deck space

• Quick clean out                                    10-15 min.

• High efficiency DE filtration     Less usage of filter cartridges

• New leaf design                                   no DE by-pass

• Quick rig up, two skids             Ideal for offshore and onshore

• No down time                           With connected back up unit

Auxiliary Filtration Equipment:

• One dirty brine tank 500 bbl

• One Centrifugal Pump, diesel driven to feed fluids to the filter units.

• One  600 VPL DE filter unit

• One  cartridge filter unit TDW 610  50/40

• One clean brine tank 500 bbl

• One Turbididity meter

Consumables

• DE-media

• Filter Cartridges all Beta5000

Benefits for Customer:

• Reduced filtration cost

• Reduction of total used brines (well circulation)

• Minimum formation damages

• Reclaim expensive fluids

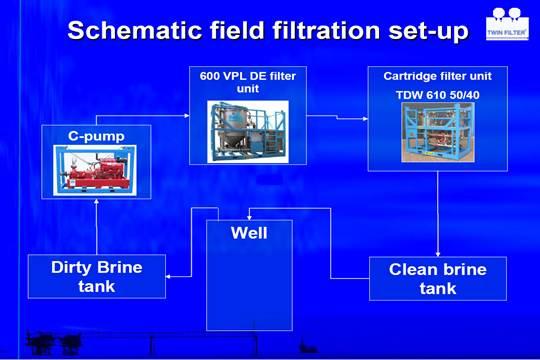

Filtration Equipment layout
